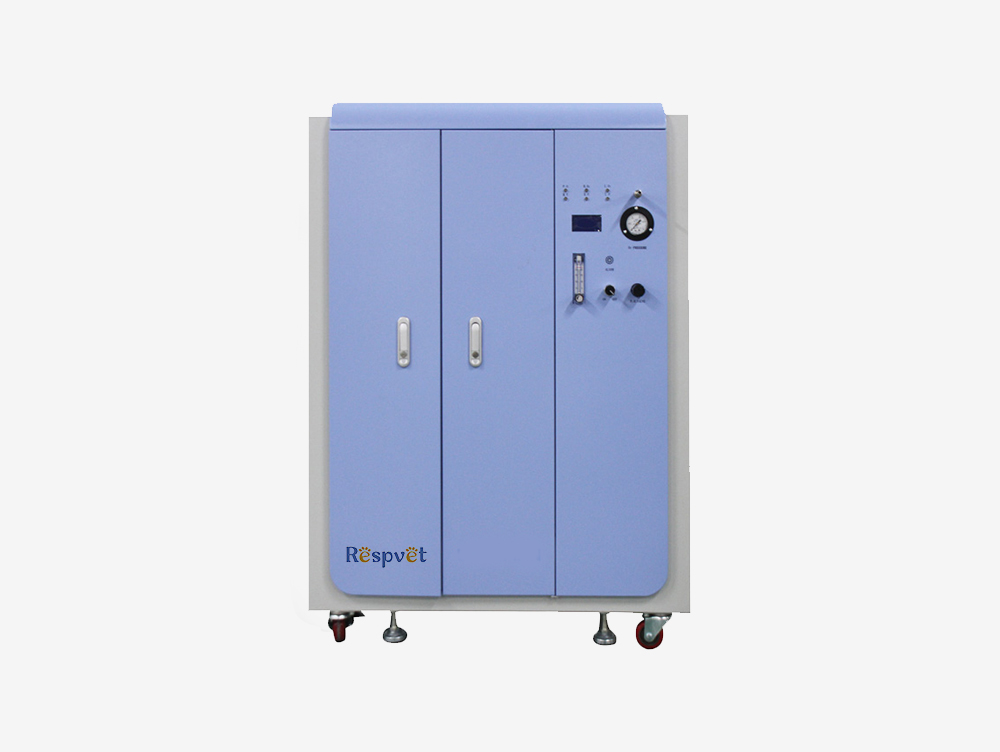

Model: VET-10-4.0/VET-20-4.0
Key Features:
High pressure/ Thomas compressor/ Automatic dehydrator
Features:
I. Pressure swing adsorption (PSA) generates oxygen from the air, safely and conveniently.
II. Meet the oxygen supply requirements for anesthesia machines, with an outlet pressure as high as 60 Psi (0.4Mpa).
III. Compatible with most international brands of anesthesia machines and ventilators.
IV. Suitable for large animals, such as cattle and horses.
V. Meets various clinical demands of veterinarians and widely applicable for supplying oxygen in veterinary clinics during surgeries, post-operation, ICU, and emergencies.
VI. Be connected to a buffer tank for stable oxygen supply.
VII. Automatically stops and starts oxygen production according to the oxygen demand(optional).
Application:

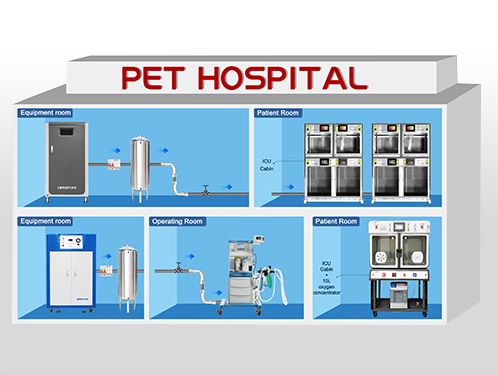

During surgeries for sick pets, the oxygen concentrator provides a stable and timely oxygen source to the anesthesia machine, ensuring the smooth progress of the surgery.
Specifications:
| Model | Net weight | Flow rate | Size | Oxygen Concentration | Outlet Pressure (Mpa) | Power Consumption | Alarms |
| VET-10-4.0 | 90Kgs | 1-10 L/min | 590*460*1300mm | 93±3% | 60Psi | ≤1250W | Power failure alarm, High&Low pressure alarm, Low concentration alarm |
| Model | Net weight | Flow rate | Size | Oxygen Concentration | Outlet Pressure (Mpa) | Power Consumption | Alarms |
| VET-20-4.0 | 118Kgs | 0-20 L/min | 957.5*500*1327mm | 93±3% | 60Psi | ≤2000W | Power failure alarm, High&Low pressure alarm, Low concentration alarm |
