5L Veterinary Oxygen Concentrator

Model: VET-5KW

Key Features:

Oxygen Therapy/For surgery/post-operation/ICU/Emergency

Features:

Using the molecular sieve pressure swing adsorption principle, air is used as the raw material for physical oxygen production, eliminating the need for daily tank changing and inflation;

One machine with multiple functions, meeting the oxygen supply needs of animal anesthesia machines, postoperative oxygen supply, ICU oxygen supply, and emergency oxygen supply;

With high outlet pressure, it can be connected to a cage and used as an anesthetic gas source for small animals weighing less than 7kgs, such as cats and dogs;

It meets the various clinical demands of veterinarians and is widely applicable to oxygen supply for veterinary clinic surgery, post-operation, ICU, and emergency;

Oxygen is supplied according to the time set by the user, and the oxygen production program automatically stops.


Application:

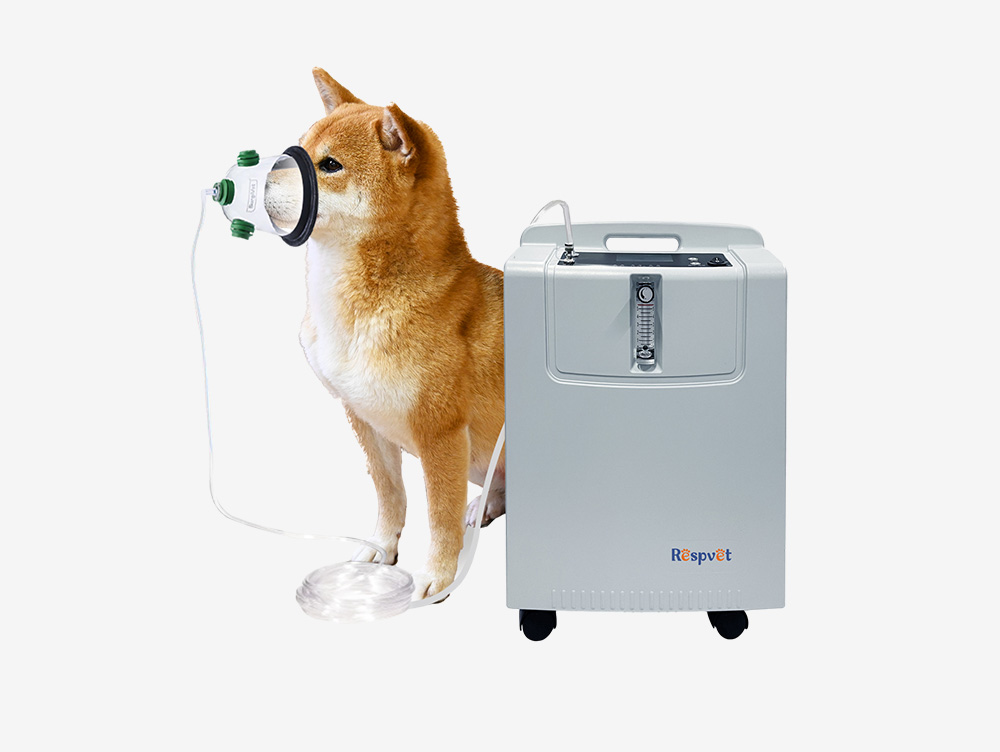

Working with a mask to perform oxygen therapy: Quickly supply oxygen to hypoxic animals and treat some respiratory diseases through a mask.

Working with an anesthesia machine: Provide a stable and timely oxygen source for the anesthesia machine and ensure the smooth progress of the surgery.

Working with an oxygen chamber: Provide oxygen to the oxygen chamber to further help the animal grow, promote wound healing after surgery, and aid in burn recovery, etc.


Specifications:

Flow rateNet weightOxygen ConcentrationSizeSound LevelOutlet Pressure (Mpa)Power ConsumptionPowerAlarmsVeterinary Cage
0.5-5L/min15Kgs93±3%350*280*510mm≤40db0.04-0.07Mpa≤300WAC110/220/230V, 50/60HzPower failure alarm, High & Low pressure alarm, Low concentration alarmMedium Size 600*450*450mm
