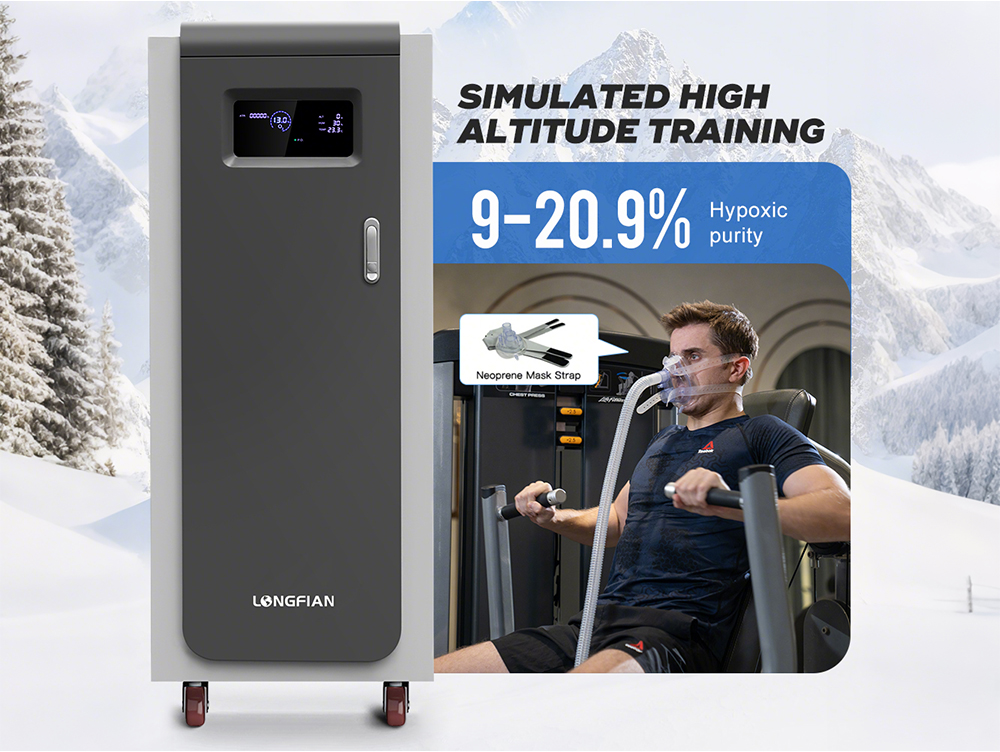

400-600L Hypoxic Generator

Model: JAY-40H JAY-60H

Key Features:

Hypoxia training/hypoxic outlet & oxygen outlet

Features:

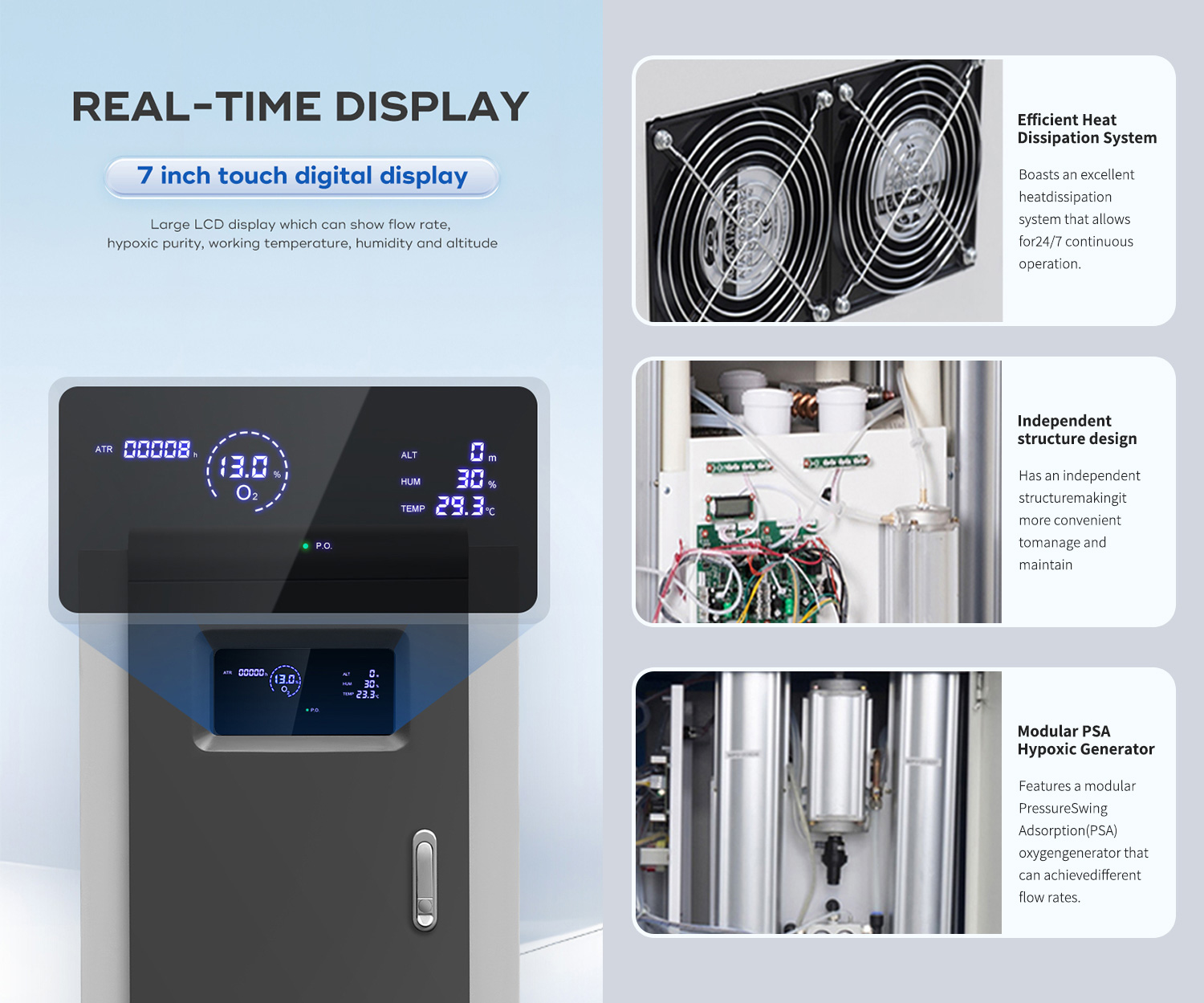

I. Oil-free high efficiency compressor.

II. Good heat dissipation system.supports 24/7 operation.

III. Independent structure design, more convenient to manage and maintain.

IV. Modular PSA oxygen generator,easy to reach different flow rate.


Applications:

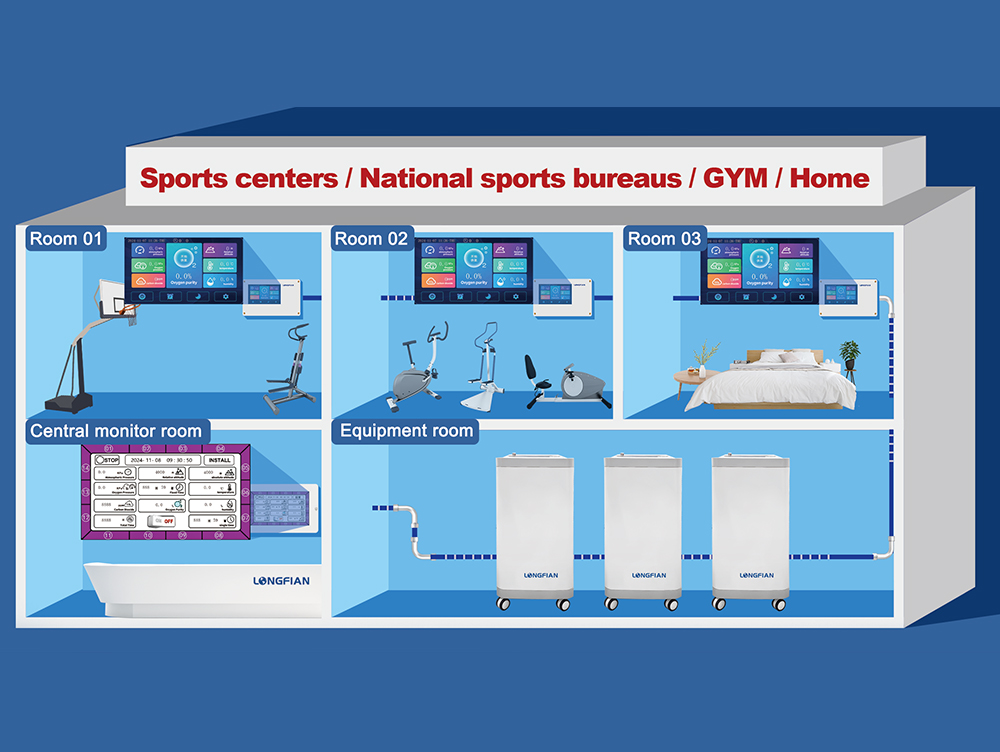

I. The hypoxic training system consists of hypoxic generator, oxygen controller and LCD monitor, which is widely used in sports centers, national sports bureaus and gyms to improve athletes' physical performance.

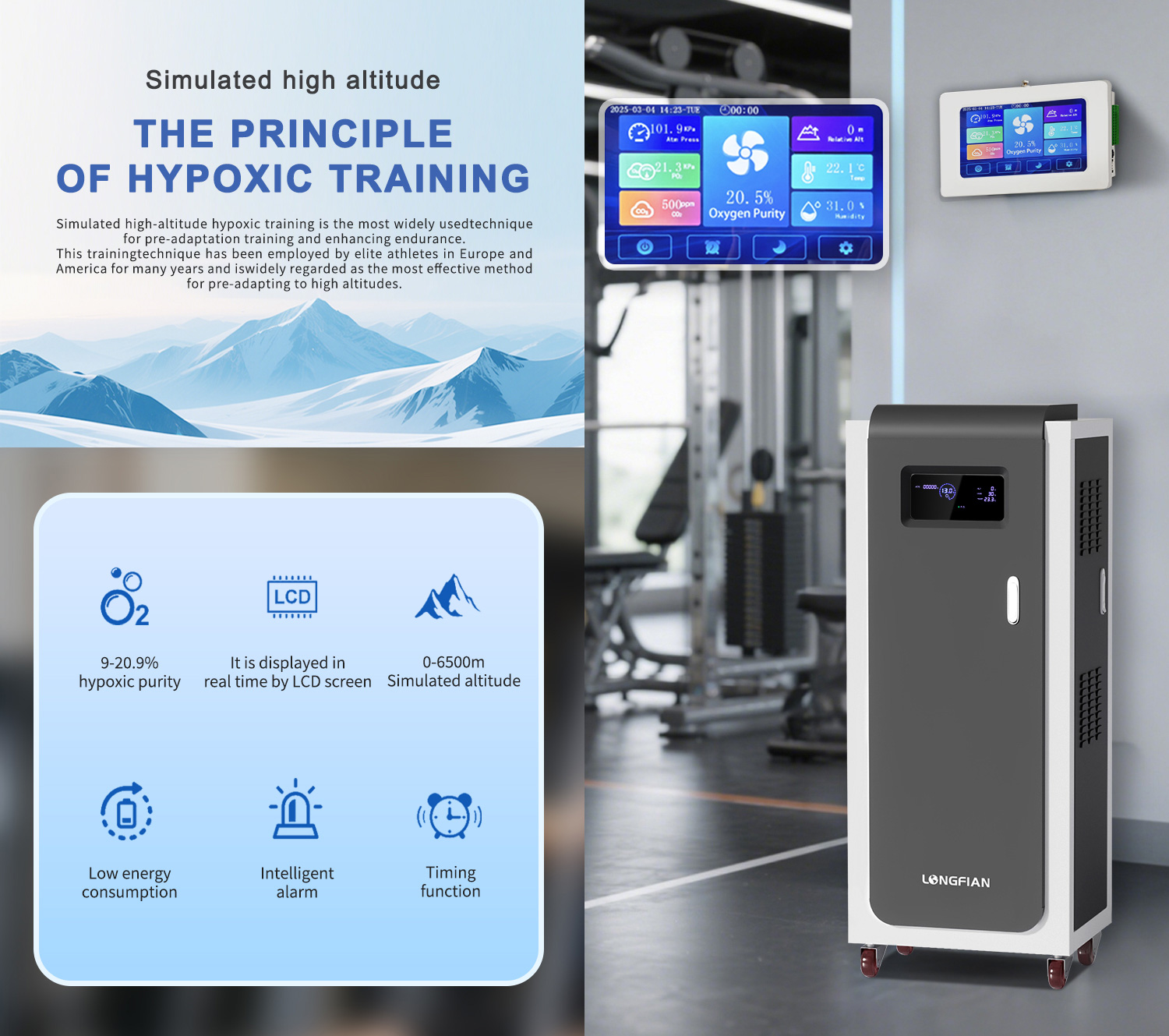

II. It can simulate different altitudes from 0-5000 meters, achieve hypoxic purity from 9% to 20%.

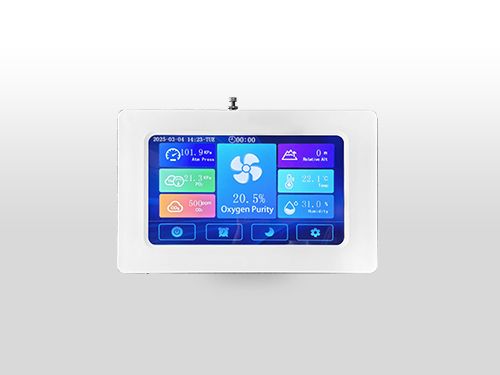

III. Each room is also equipped with LCD monitor to show the hypoxic purity, temperature, humidity, altitude and CO2 content.

IV. The central monitor can collect all datas from individual LCD monitor in each room, thereby monitoring the changes in SpO2, blood pressure and pulse of each athlete during simulated altitude training.

V. Eauipped with wrist or finger-clip oximeter to monitor athletes Spo2 & pulse at any time and upload the datas to the central monitor.


Specifications:

ModelNet weightHypoxic flowSizeHypoxic ConcentrationSimulated altitudeOutput PressureSound LevelPower ConsumptionAlarmOptional Accessories
JAY-40H160Kgs400LPM760*540*1380mm9%-20.9%0-6500m (0-21330ft)6-10Psi (0.04-0.07Mpa)≤58db≤2200WPower failure alarm, High & Low-pressure alarmPulse oximeter, Monitoring system


ModelNet weightHypoxic flowSizeHypoxic ConcentrationSimulated altitudeOutput PressureSound LevelPower ConsumptionAlarmOptional Accessories
JAY-60H245Kgs600LPM760*540*1960mm9%-20.9%0-6500m (0-21330ft)6-10Psi (0.04-0.07Mpa)≤60db≤3300WPower failure alarm, High & Low-pressure alarmPulse oximeter, Monitoring system
