Model: JAY-10-4.0/JAY-20-4.0/JAY-40-4.0
Key Features:
For ICU&operating rooms/Automatic start&stop/Longer lifespan
Features
I. High efficiency three-tower adsorption system more durable.
II. Pressure gauge on site to adjust flexibly if necessary.
III. Small and compact, easy to move for any emergency.
IV. Automatic dehydrator/refrigerated air dryer.
V. Optional: Auto off at 4bar, Auto on at 3bar.
Application

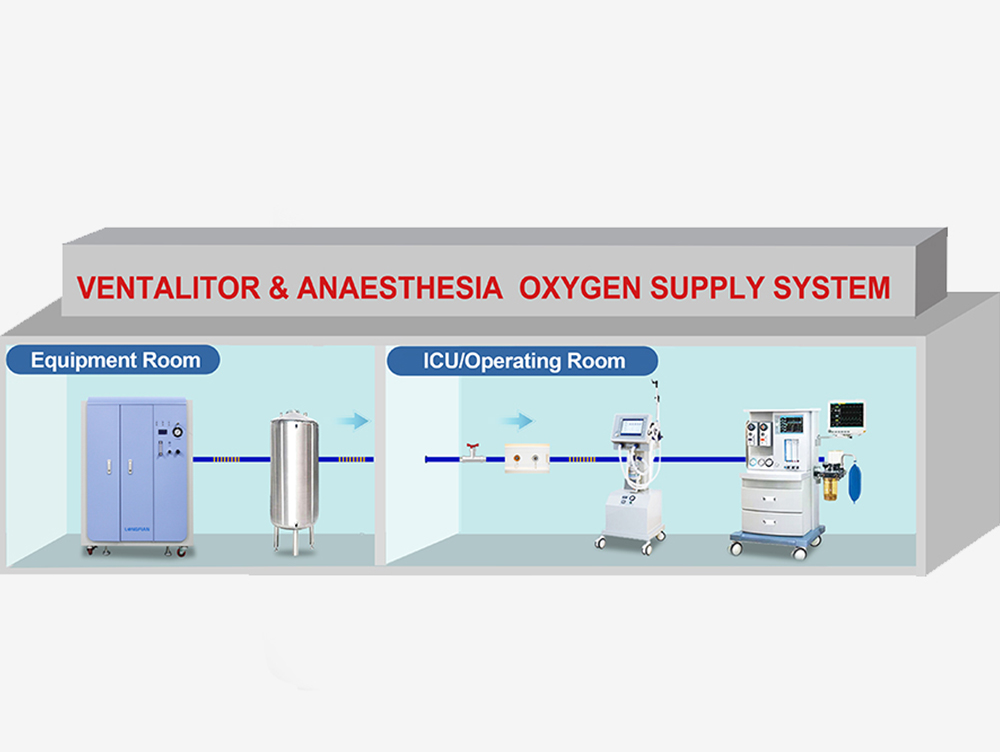

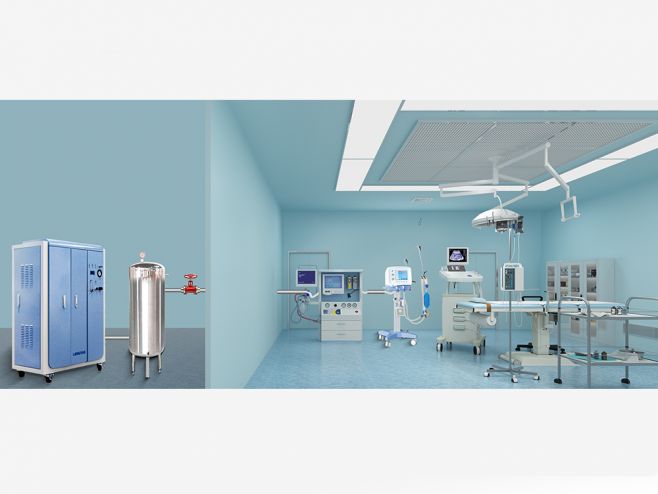

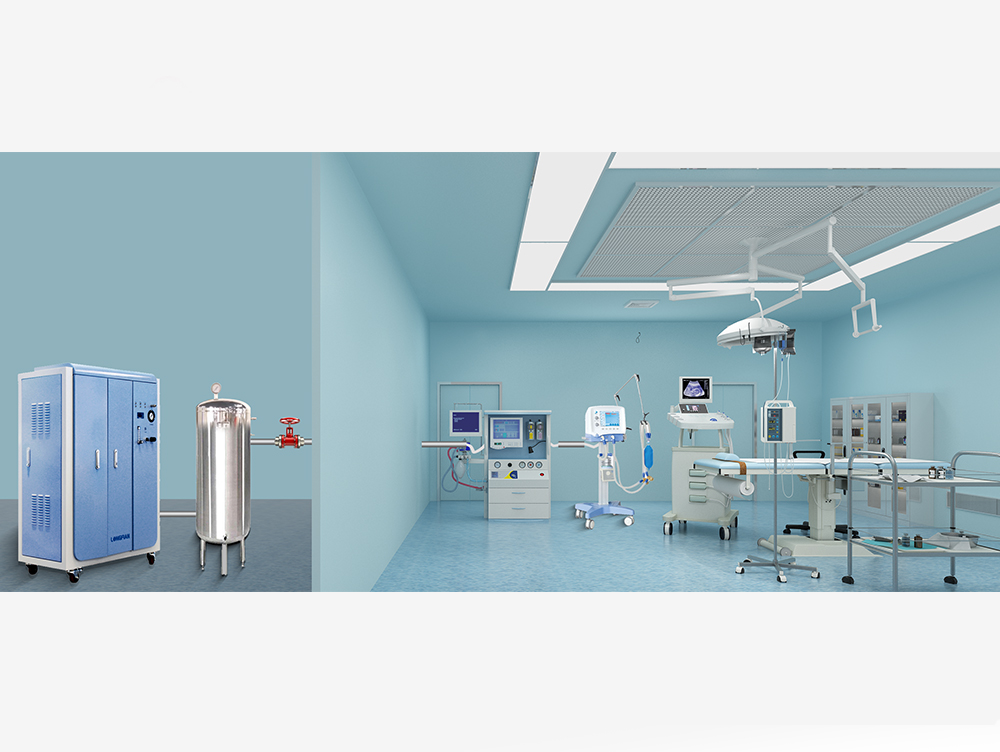

Applied with ventilator or anesthesia machine at ICU &operating room.
Specification:
| Model | Flow Rate | Net weight | Oxygen Concentration | Power Consumption | Outlet Pressure | Dimension | Alarm |
| JAY-10-4.0 | 1-10L/min | 90Kgs | 93% (±3%) | ≤1250W | 60PSI | 590*460*1300mm | Power failure alarm; High and low pressure alarm; Low oxygen concentration alarm. |
| Model | Flow Rate | Net weight | Oxygen Concentration | Power Consumption | Outlet Pressure | Dimension | Alarm |
| JAY-20-4.0 | 1-20L/min | 118Kgs | 93% (±3%) | ≤2200W | 60PSI | 957.5*500*1327mm | Power failure alarm; High and low pressure alarm; Low oxygen concentration alarm. |
| Model | Flow Rate | Net weight | Oxygen Concentration | Power Consumption | Outlet Pressure | Dimension | Alarm |
| JAY-40-4.0 | 1-40L/min | 256Kgs | 93% (±3%) | ≤4440W | 60PSI | 920*895*1450mm | Power failure alarm; High and low pressure alarm; Low oxygen concentration alarm. |
