Model: JAY-15/JAY-20/JAY-30/JAY-40/JAY-60
Key Features:
Cylinder Filling Plant/4-cylinder compressor/Ultra quiet
Features
I. Ultra quiet design with 4-cylinder compressor.
II. Convenient to be installed anywhere.
III. Availble to connect oxygen tank, and optional function with auto-on (1bar pressure) &auto-off (1.4bar pressure) , ensure the system longer lifespan.
IV. Head penal in patient rooms is available for optional accessories.
Application

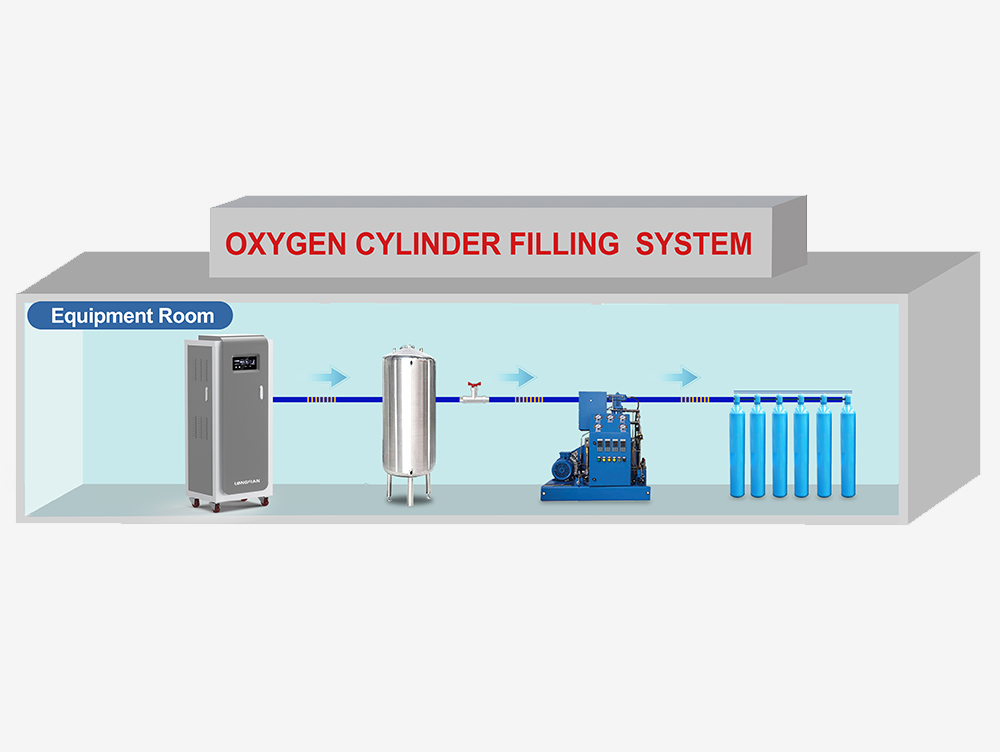

For high-pressure cylinder filling plants.
Specification
JAY-15
| Flow Rate | Net weight | Oxygen Concentration | Dimension | Outlet Pressure | Sound Level | Power Consumption | Alarm |
| 1-15L/min (0.9m³/h) | 90Kgs | 93%±3% | 530*440*780mm | 6-10Psi/20Psi /60Psi | 43db | 600W | power failure alarm, high/low-pressure alarm, low oxygen concentration alarm |
JAY-20
| Flow Rate | Net weight | Oxygen Concentration | Dimension | Outlet Pressure | Sound Level | Power Consumption | Alarm |
| 1-20L/min (1.2m³/h) | 95Kgs | 93%±3% | 530*440*1380mm | 6-10Psi/20Psi /60Psi | 48db | 1200W | power failure alarm, high/low-pressure alarm, low oxygen concentration alarm |
JAY-30
| Flow Rate | Net weight | Oxygen Concentration | Dimension | Outlet Pressure | Sound Level | Power Consumption | Alarm |
| 1-30L/min (1.8m³/h) | 140Kgs | 93%±3% | 760*540*1380mm | 6-10Psi/20Psi /60Psi | 58db | 1650W | power failure alarm, high/low-pressure alarm, low oxygen concentration alarm |
JAY-40
| Flow Rate | Net weight | Oxygen Concentration | Dimension | Outlet Pressure | Sound Level | Power Consumption | Alarm |
| 1-40L/min (2.4m³/h) | 160Kgs | 93%±3% | 760*540*1380mm | 6-10Psi/20Psi /60Psi | 58db | 2200W | power failure alarm, high/low-pressure alarm, low oxygen concentration alarm |
JAY-60
| Flow Rate | Net weight | Oxygen Concentration | Dimension | Outlet Pressure | Sound Level | Power Consumption | Alarm |
| 1-60L/min (3.6m³/h) | 245Kgs | 93%±3% | 760*540*1980mm | 6-10Psi/20Psi /60Psi | 60db | 3300W | power failure alarm, high/low-pressure alarm, low oxygen concentration alarm |
