Key Features:
High accuracy/Rapid response/Long lifespan/Anti-interference
Features:

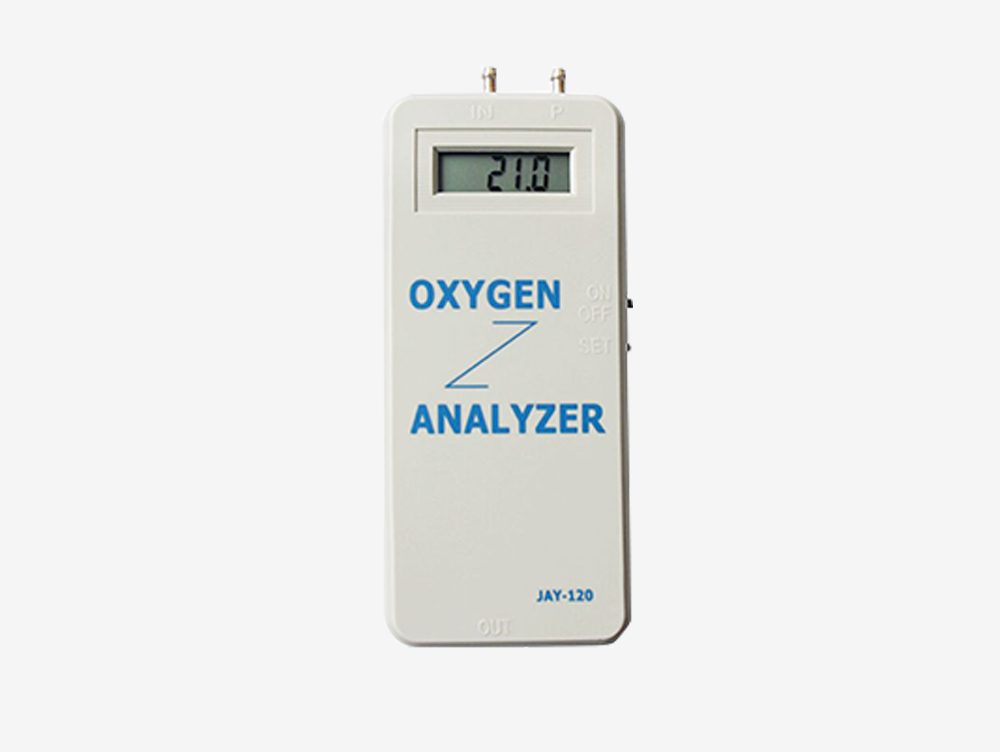

I. The oxygen analyzer measures oxygen concentration flow using ultrasound technology. It has the characteristics of high accuracy, strong anti-interference ability, rapid response, long-term stability, no need for regular asjustment, and long lifespan.
II. The pressure test adopts imported modules with high accuracy.
Application:
Designed to measure oxygen concentration, oxygen flow and outlet pressure for PSA oxygen concentrator.
Specification:
| Operating Voltage (V) | Operating Temperature (℃) | Storage Temperature (℃) | Weight (g) | Dimension (mm) | Relative Humidity | Flow Detection Range | Flow Detection Accuracy | Oxygen Concentration Detection Range（V/V） | Oxygen Concentration Detection Accuracy（V/V） | Pressure Detection Range | Pressure Detection Accuracy |
| DC 9V | 5℃~55℃ | -5℃~65℃ | 205g (without battery) | 185*80*31mm | 5%～85%RH | 0-10 L/min | ±0.2 L/min | 21.0% -- 96.0 % | ± 2% | 0-21Psi | ± 1Psi |
