Key Features:
Intelligent control/Equipped safety valve&automatic pressure relief valve
Features:
I. Users can choose 60 mins, 90 mins, or 120 mins of working time according to their needs, which is convenient to use.
II. The oxygen concentration in the chamber is controlled within 25%, ensuring the safety of users.
III. The display can show oxygen concentration, temperature, humidity and pressure.
IV. lt can ensure that the CO2, in the oxygen chamber does not exceed 6000ppm.
Specification:

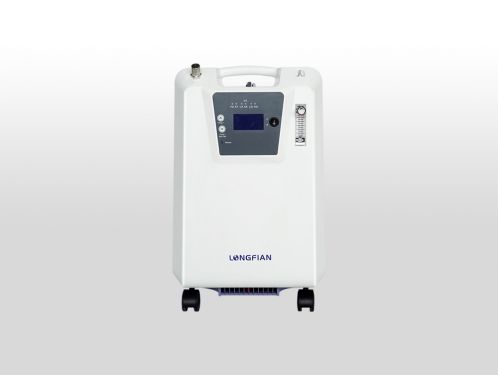

Oxygen Concentrator
| Type | O2 & Air flow rate | Air & O2 automatic control system | Cooling system | Chamber capsule full-fill time |
| O2 & Air in one | 5L/min & 60L/min (20psi/0.14Mpa) | Pressurize the chamber by air at 120L/min within 6 mins; booster mixed 93%±3% oxygen at 5L/min and air 60L/min automatically after 6 mins | Fan & Cooler | 10 mins |
| Type | O2 & Air flow rate | Air & O2 automatic control system | Cooling system | Chamber capsule full-fill time |
| O2 & Air & Air Dryer three in one | 10L/min & 100L/min (20psi/0.14Mpa) | Pressurize the chamber by mixed 93%±3% oxygen at 10L/min and air 100L/min | Air dryer | 8 mins |
| Type | Available pressure | Size | Type | Available pressure | Size |
| Soft (Sitting/Lying) | 1.3ATA/1.4ATA/1.5ATA | 1600*650*1200mm/2100*850*202mm | Hard | 1.3ATA/1.4ATA/1.5ATA | L2100*W1200*H1630mm |
