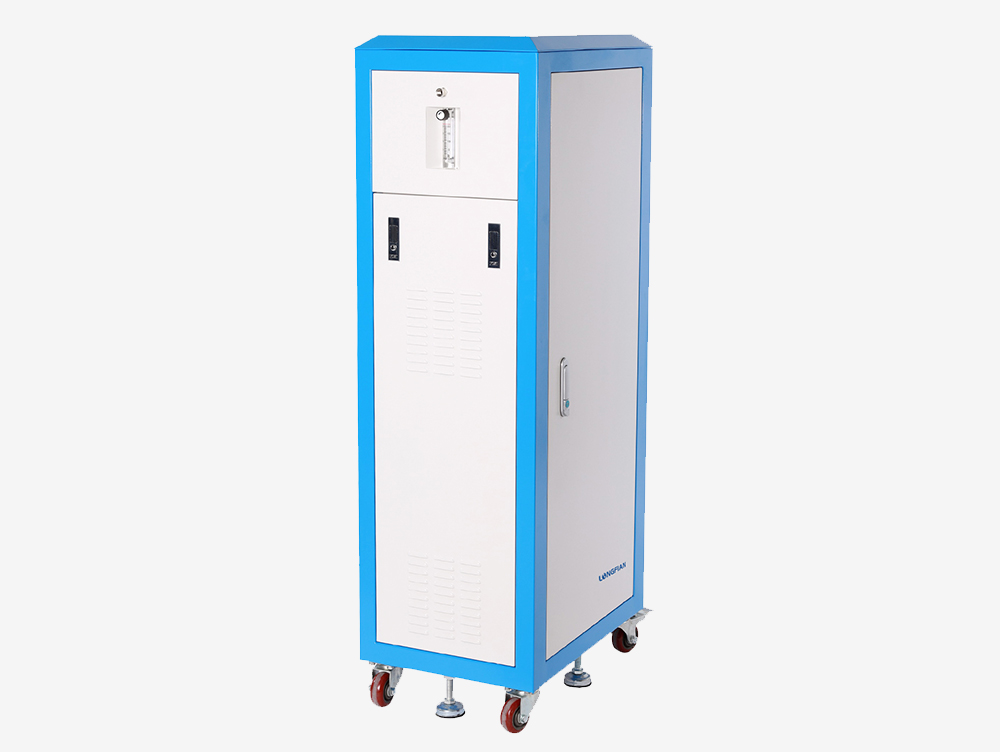

High Flow Oxygen Concentrator for Aquaculture

Model: JAY-20/JAY-30/JAY-40/JAY-60

Key Features:

Sufficient oxygen purity&flow/24h non-stop work

Features:

I. Industrial oxygen concentrators use advanced filtration and molecular sieve technology to separate oxygen in the air from other gases.

II. Industrial oxygen concentrators provide a more cost-effective and efficient solution for producing high-purity oxygen than traditional methods such as cryogenic distillation or chemical separation.


Application:

I. Increasing dissolved oxygen levels: These concentrators convert ambient air into oxygen-rich gas and pump the gas into the water, increasing the dissolved oxygen levels.

II. Improving water quality: Oxygen concentrators also help remove harmful gases and toxins, such as carbon dioxide and ammonia, from the water, thereby improving water quality and minimizing the risk of fish and shrimp mortality.

III. Enhancing growth and productivity: By maintaining optimal oxygen levels in the water, fish and shrimp can breathe easily and efficiently, resulting in faster growth and increased productivity.

IV. Reducing operating costs: Oxygen concentrators are more cost-effective than traditional oxygen supply methods, such as oxygen cylinders, as they can continuously generate oxygen without the need for frequent replacement or refilling.

Overall, oxygen concentrators are a critical component of modern aquaculture operations, helping to improve water quality, boost productivity, and ensure the health and well-being of fish and shrimp populations.


Specification:

JAY-20

Flow RateNet weightOxygen ConcentrationDimensionOutlet PressureSound LevelPower ConsumptionAlarm
1-20L/min (1.2m³/h)95Kgs93%±3%600*400*1380mm; 810*440*670mm6-10/20Psi (0.04-0.07/0.14Mpa)≤55db≤1100Wpower failure alarm, high/low pressure alarm, low oxygen concentration alarm


JAY-30

Flow RateNet weightOxygen ConcentrationDimensionOutlet PressureSound LevelPower ConsumptionAlarm
1-30L/min (1.8m³/h)140Kgs93%±3%760*540*1380mm6-10/20Psi (0.04-0.07/0.14Mpa)≤58db≤1650Wpower failure alarm, high/low pressure alarm, low oxygen concentration alarm


JAY-40

Flow RateNet weightOxygen ConcentrationDimensionOutlet PressureSound LevelPower ConsumptionAlarm
1-40L/min (2.4m³/h)160Kgs93%±3%760*540*1380mm6-10/20Psi (0.04-0.07/0.14Mpa)≤58db≤2200Wpower failure alarm, high/low pressure alarm, low oxygen concentration alarm


JAY-60

Flow RateNet weightOxygen ConcentrationDimensionOutlet PressureSound LevelPower ConsumptionAlarm
1-60L/min (3.6m³/h)245Kgs93%±3%760*540*1960mm6-10/20Psi (0.04-0.07/0.14Mpa)≤60db≤3300Wpower failure alarm, high/low pressure alarm, low oxygen concentration alarm
